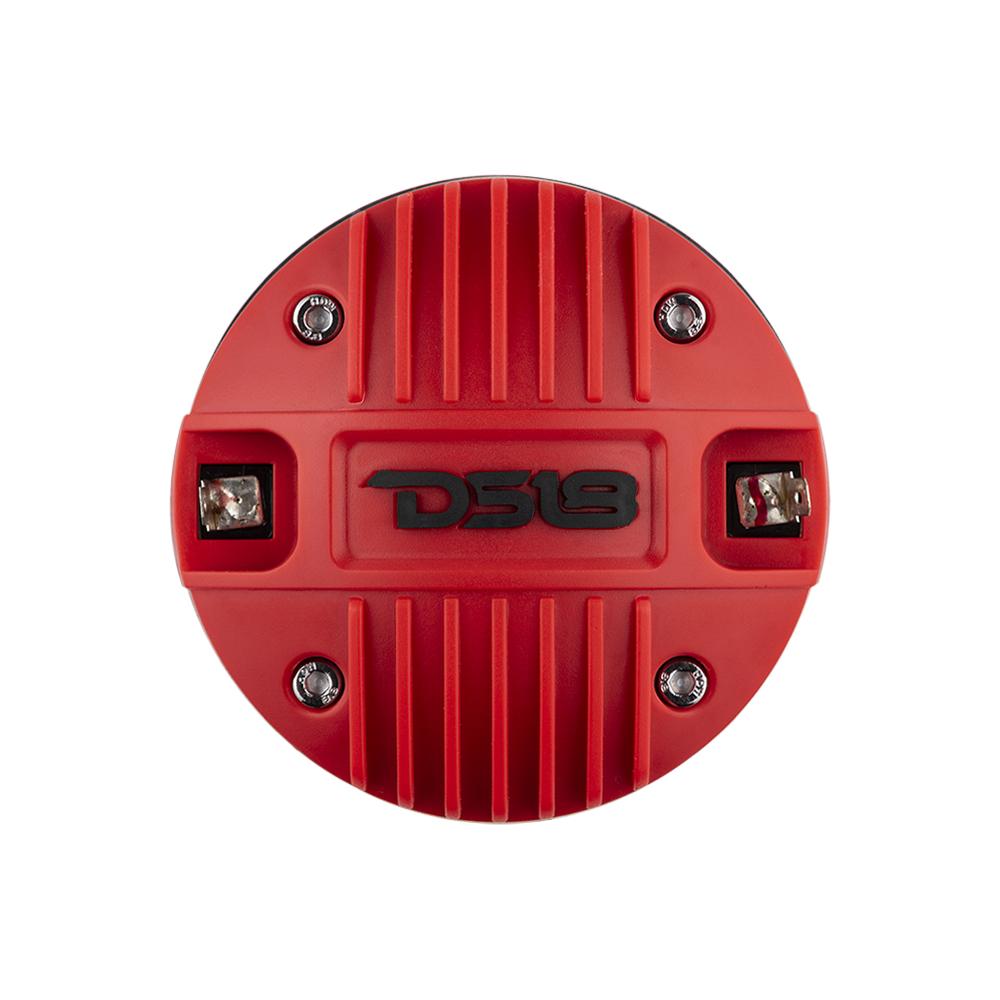

With the ever evolving like of pro audio that DS18 provides, we are happy to present out next evolution of driver, the PRO DR1.354 Titanium Compression Driver! This 1.35-inch driver features a titanium compression diaphragm's RMS rating states a handling of 80w AES and 320w Peak power.
These compression drivers have a great frequency response of 500Hz to 20KHz, so they can play a much wider range than normal. They come in 4-ohms and with a sensitivity of 103dB, they will not require full power to get loud and sound great! They all come with beautiful push terminals and are surrounded by a very aesthetic red DS18 cover. These drivers will require a 1" Horn Throat to complete the package that is sold separately. These new DS18 titanium horns are sure to bring brightness to any system needing massive high-end drivers!
Highlights
| Throat Diameter | 1" |
| Installation Type | Screw-On |
| Nominal Impedance | 4 ohms |
| AES power Handling | 80W |
| Program Power Handling | 160W |
| Peak Power Handling | 320W |
| Sensitivity (1w/1m) | 103 dB |
| Frequency Response | 500 Hz- 20 KHz |
| Recommended Hi Pass Crossover | 1KHz |
| Motor | |
| Voice Coil Diameter | 1.35" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 16 oz |
| Measurement | |
| Overall Diameter | 3.54" |
| Overall Depth | 2.51" |
| Bolt Pattern/Type | M34 |
| Mounting Depth | 1.61" |
