The Apex Series PA1502 powersports amplifiers deliver efficient Class D power, from an ultra-compact chassis, designed to fit into tight spaces and withstand outdoor environments without missing a beat. Available with 2-channels of output power, the Apex Series PA1502 includes selectable electronic crossover frequency adjustment, with lo-pass capability & selectable bass boost, for quick and easy installation. Plus, it has been engineered for harsh conditions, with power and performance to meet the needs of most audio systems making it the perfect match for all of your JBL car, marine and powersports products.

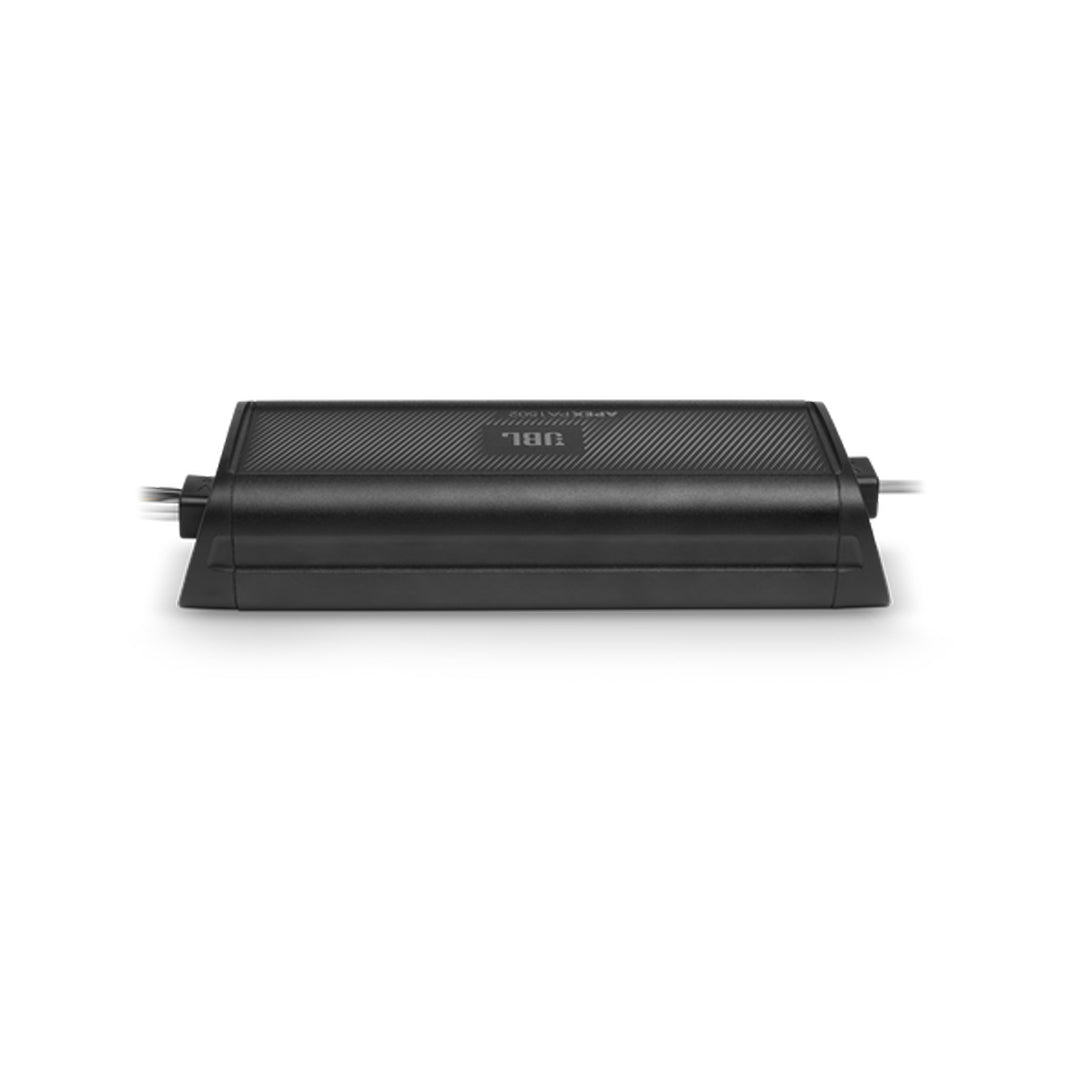

JBL Apex powersports amplifiers feature an ultra-compact aluminum chassis and small footprint design to allow for installation almost anywhere.
JBL Apex powersports amplifiers are engineered to withstand harsh conditions, with fully “marinized” circuit boards to ensure flawless power delivery, year after year.
Dynamic Class D output power is perfectly matched to meet the needs for your JBL car, marine and powersports products.

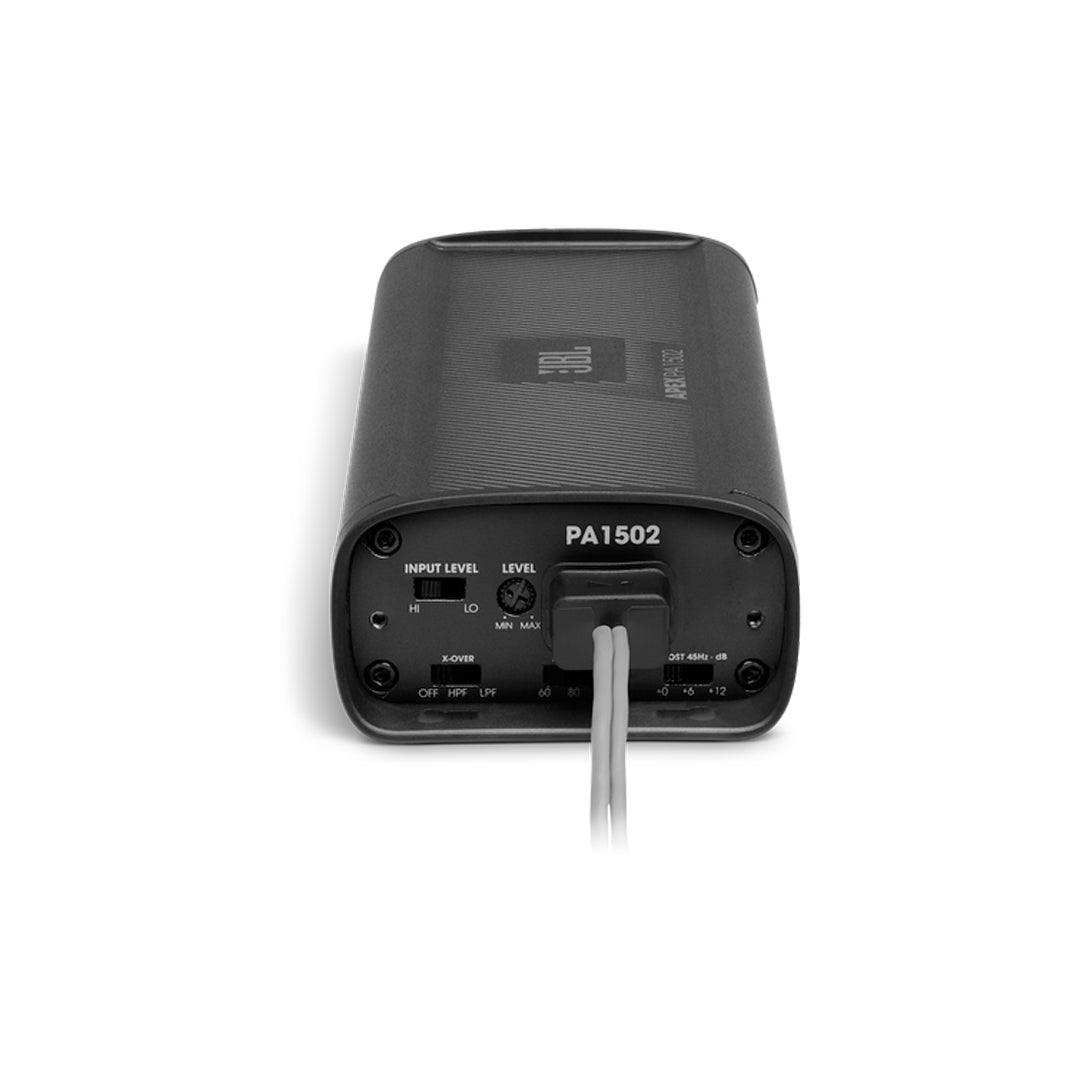

The Apex PA1502 amplifier features selectable all-/hi-/lo-pass crossover filters, with selectable 12dB per octave electronic crossover slopes from 60-, 80-, 120Hz to allow for quick and easy installation.
Speaker-level and low-level inputs let JBL Apex amplifiers integrate with just about any audio input.
JBL Apex amplifiers have to go through environmental testing that would destroy other amplifiers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light & salt spray and drives them at full power for days at a time.
JBL engineers every product with a high level of design. In applications where the Apex PA1502 will be visible, it will enhance the vehicles asthetic not take away from it.
JBL Apex powersports amplifiers feature an ultra-compact aluminum chassis and small footprint design to allow for installation almost anywhere.
JBL Apex powersports amplifiers are engineered to withstand harsh conditions, with fully “marinized” circuit boards to ensure flawless power delivery, year after year.
|
| Weather Resistance | Conformal-Coated |
Number of Channels | 2 |
Class | D |
Peak Power Rating (Watts) | |
RMS Power Rating (Watts x Channels) - 4 Ohms | 100 x 2 |
RMS Power Rating (Watts x Channels) - 2 Ohms | 150 x 2 |
| Bridged RMS Power Rating (Watts x Channels) | 300 x 1 |
| Minimum Impedance Unbridged (Ohms) | 2 |
| Minimum Impedance Bridged (Ohms) | 4 |
| THD at Rated RMS Power | |
| Bulit-in Crossover - Low Pass | Yes |
| Built-in Crossover - High Pass | Yes |
| High Pass Crossover Frequency (Hz) | 60, 80, 120 @12dB |
| Low Pass Crossover Frequency (Hz) | 60, 80, 120 @12dB |
| Signal-to-Noise Ratio | |
| Bass Boost | 0, 6, 12dB @45Hz |
| Bass Remote Included | |
| Fuse Rating | 25A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 10 Gauge |
| Warranty | 1 Year |
