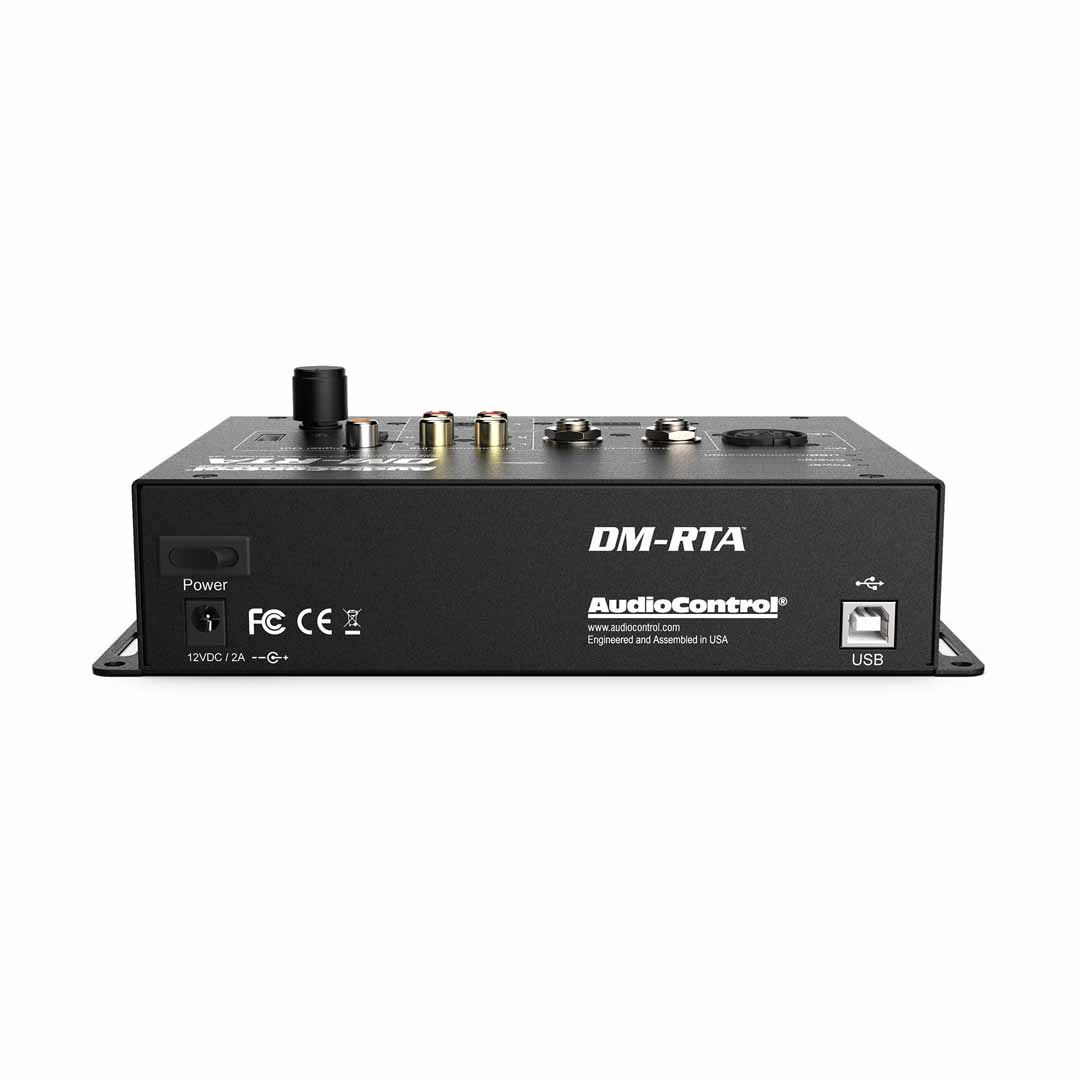

Real time analyzer and multi-test tool

Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.

The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).

DM-RTA App

The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This is the last test tool you’ll ever need.

AudioControl offers a wide range of professional measurement and instrumentation microphones which will make a perfect addition to your DM-RTA tool kit for making accurate acoustical measurements. For an entry-level measurement microphone, choose the CM-10, a long time standard issue microphone for AudioControl’s legendary SA-3052 analyzers. If you’re looking for a slightly better frequency response, look no further than the CM-20. The high-precision Josephson C550H rounds off the top of the list for truly accurate readings and impeccable frequency response.

The DM-RTA’s microphone preamp will also support any standard measurement microphone, should you already have one in your tool kit. 48V phantom power can be activated from the DM-RTA app and microphone gain is variable so your microphone may be easily calibrated to the DM-RTA hardware.

Features

• Test and Measure Any Signal
• Balanced Line Level Inputs and Outputs
• Unbalanced Line Level Inputs and Outputs
• Speaker Level Inputs (handles up to 400 watts)
• Microphone Input with 48V Phantom Power (microphone sold separately)
• Microphone presets (for CM-10, CM-20 & C550H)
• Digital and USB Outputs
• Connect to PC/Mac, Phone or Tablet
• Option Port for Bluetooth Connectivity
• Battery Powered and Compact for Portability
